LV PV installation Aromáticas Zalabí

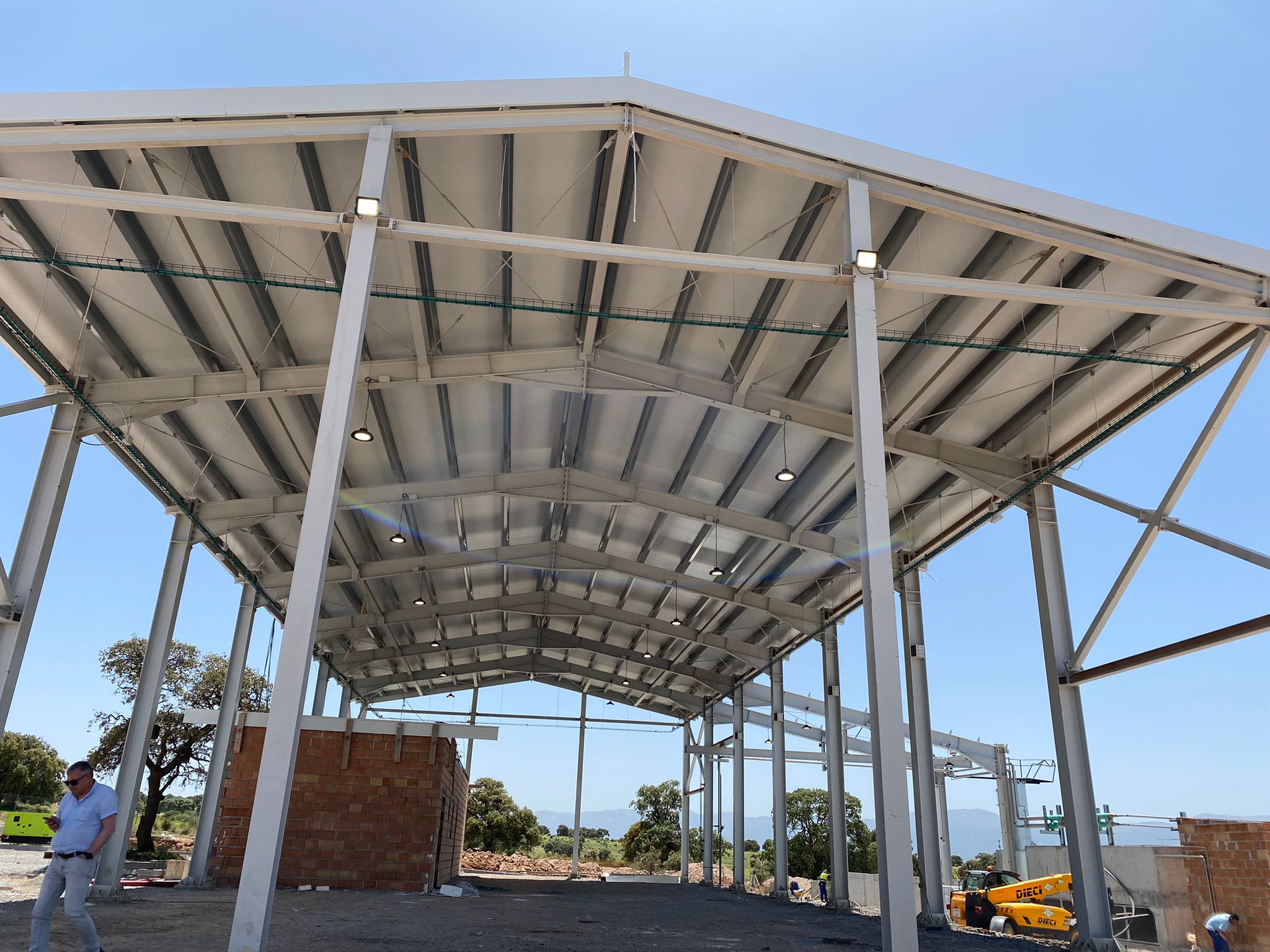

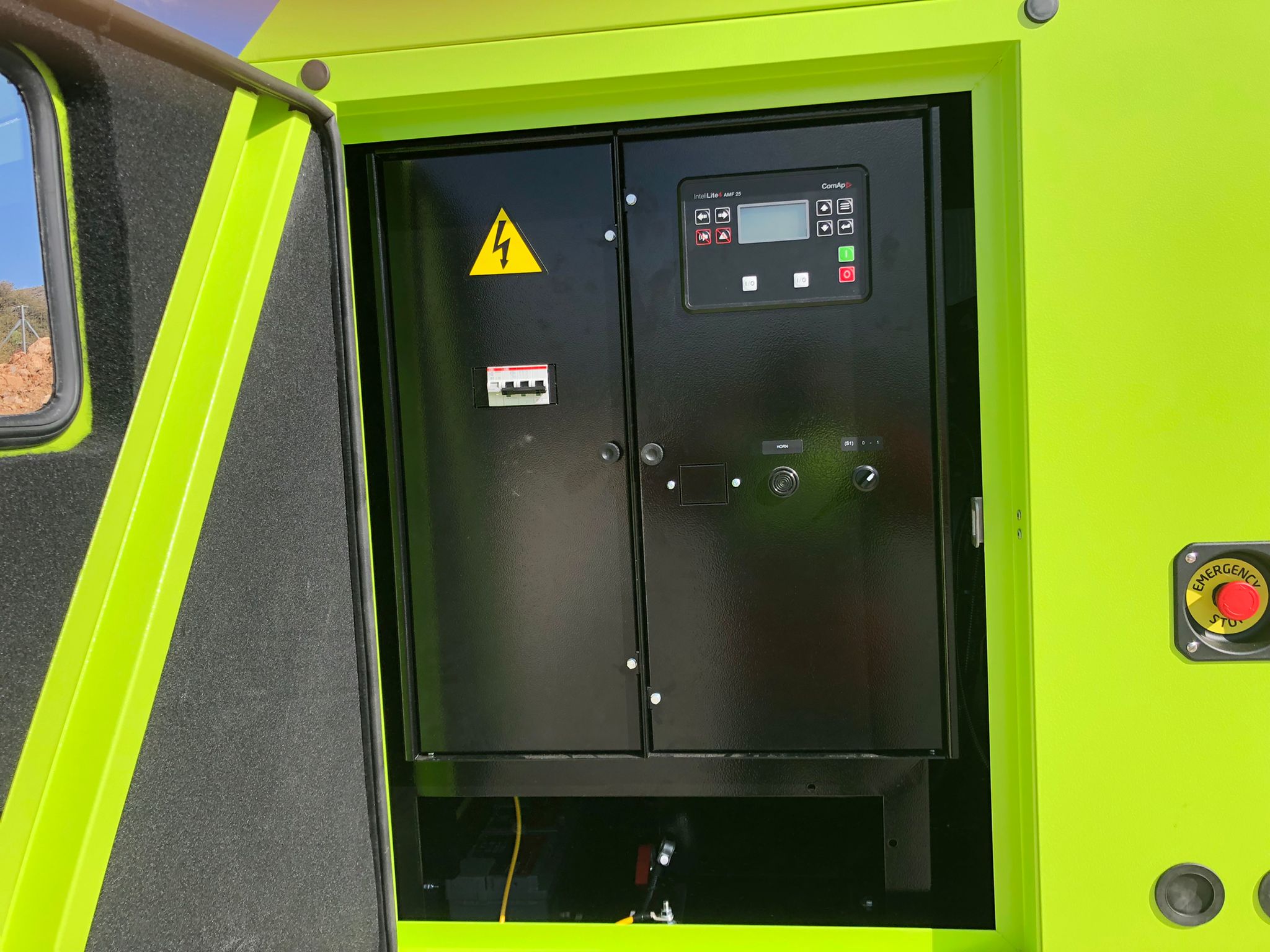

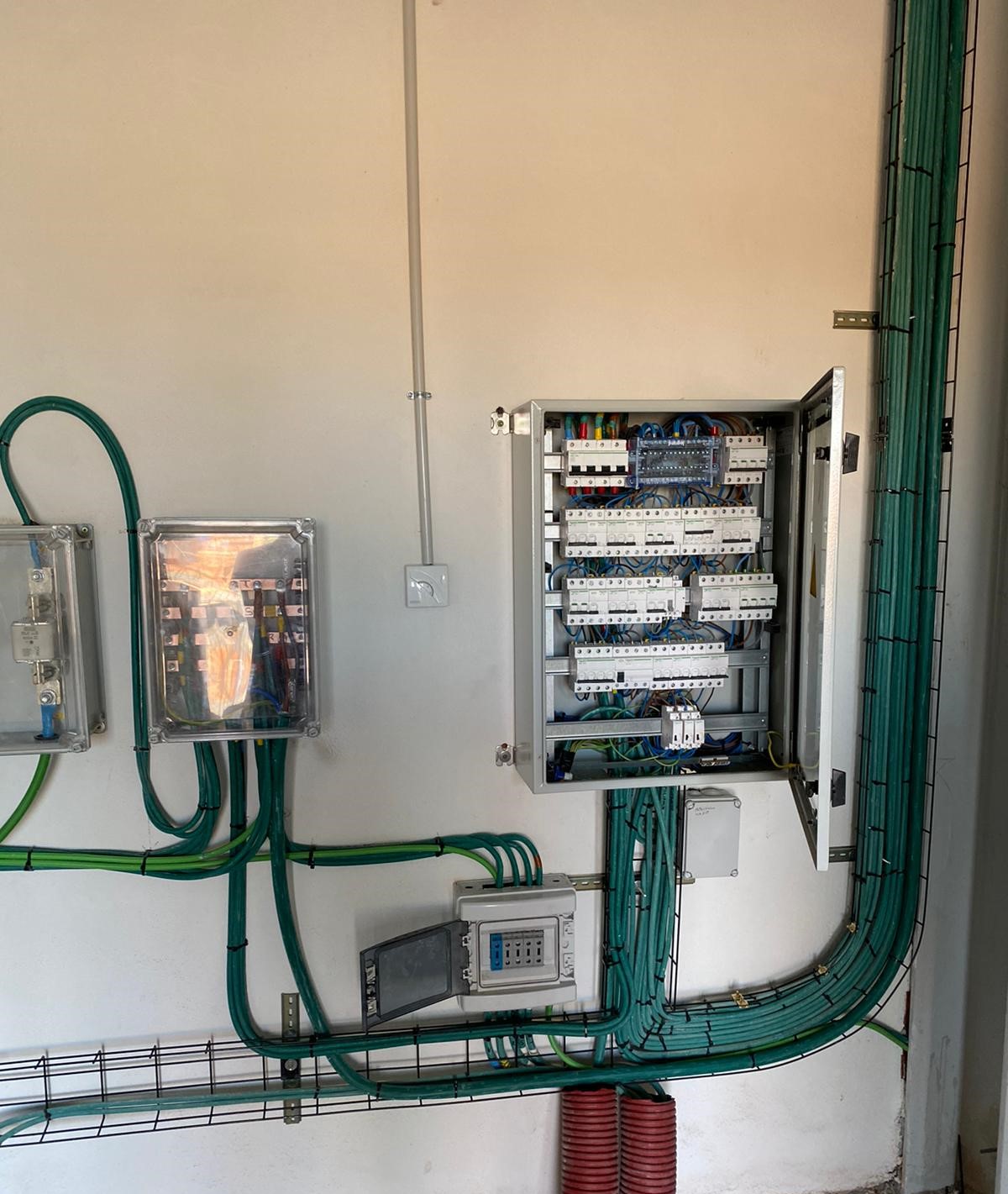

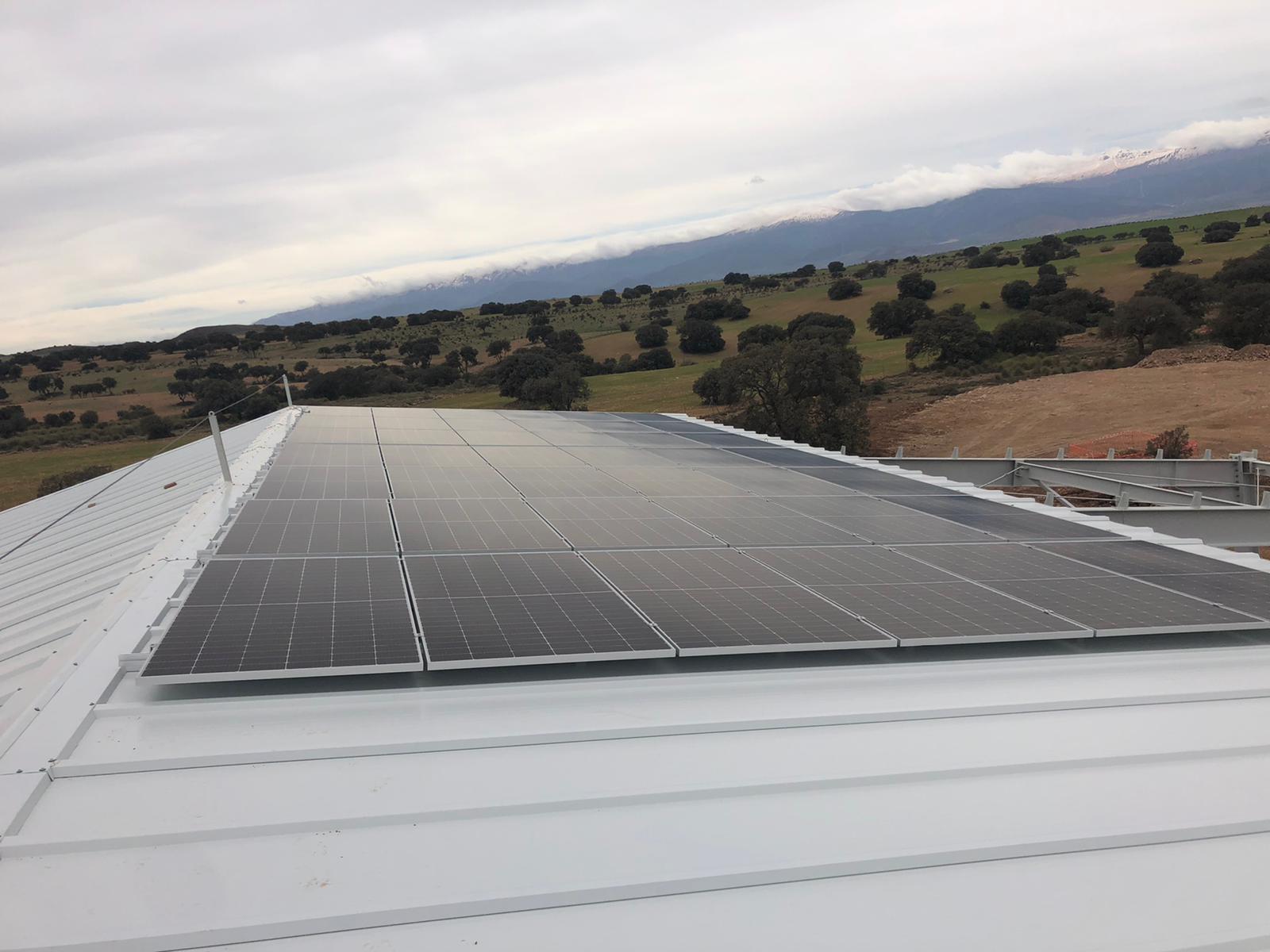

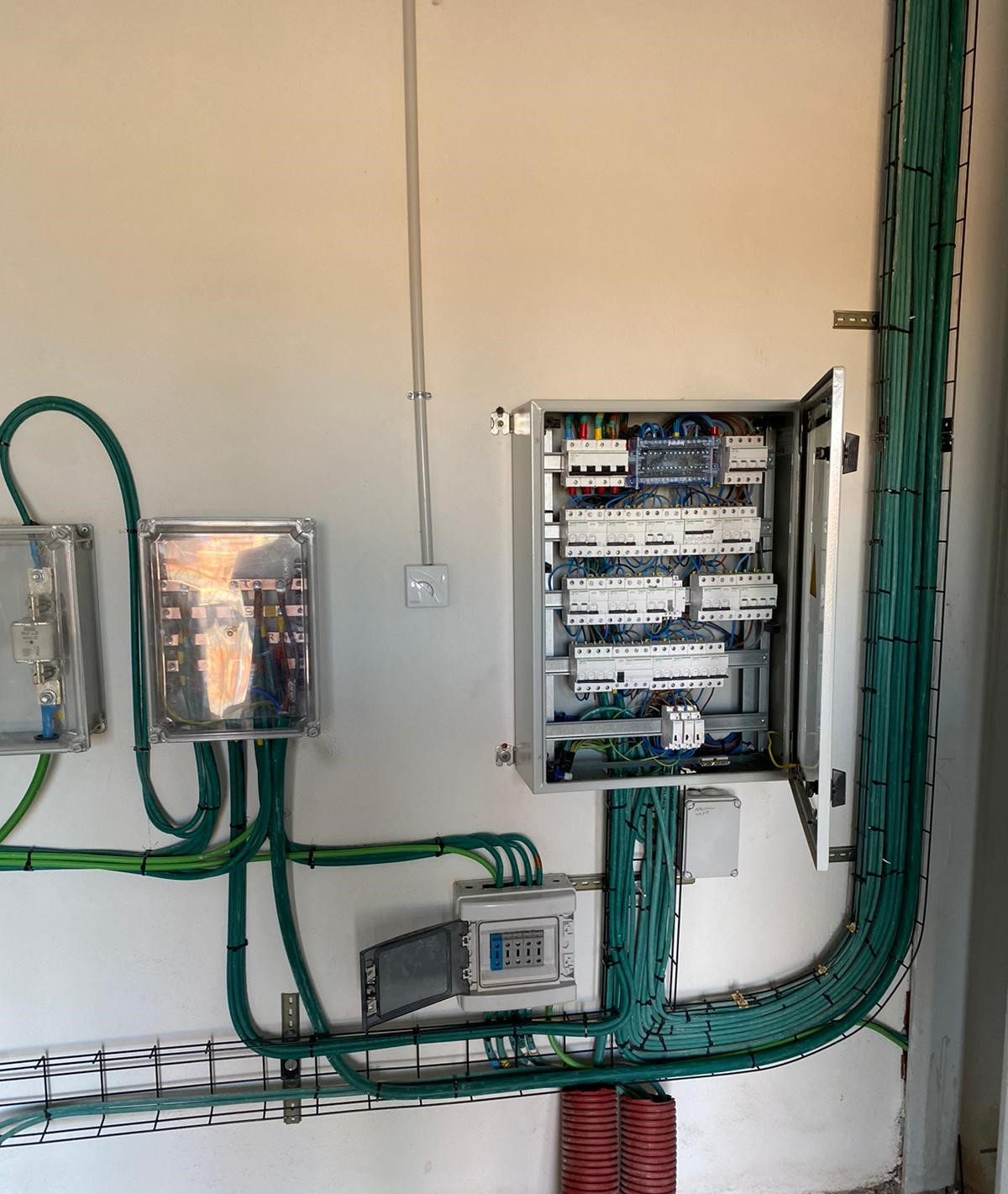

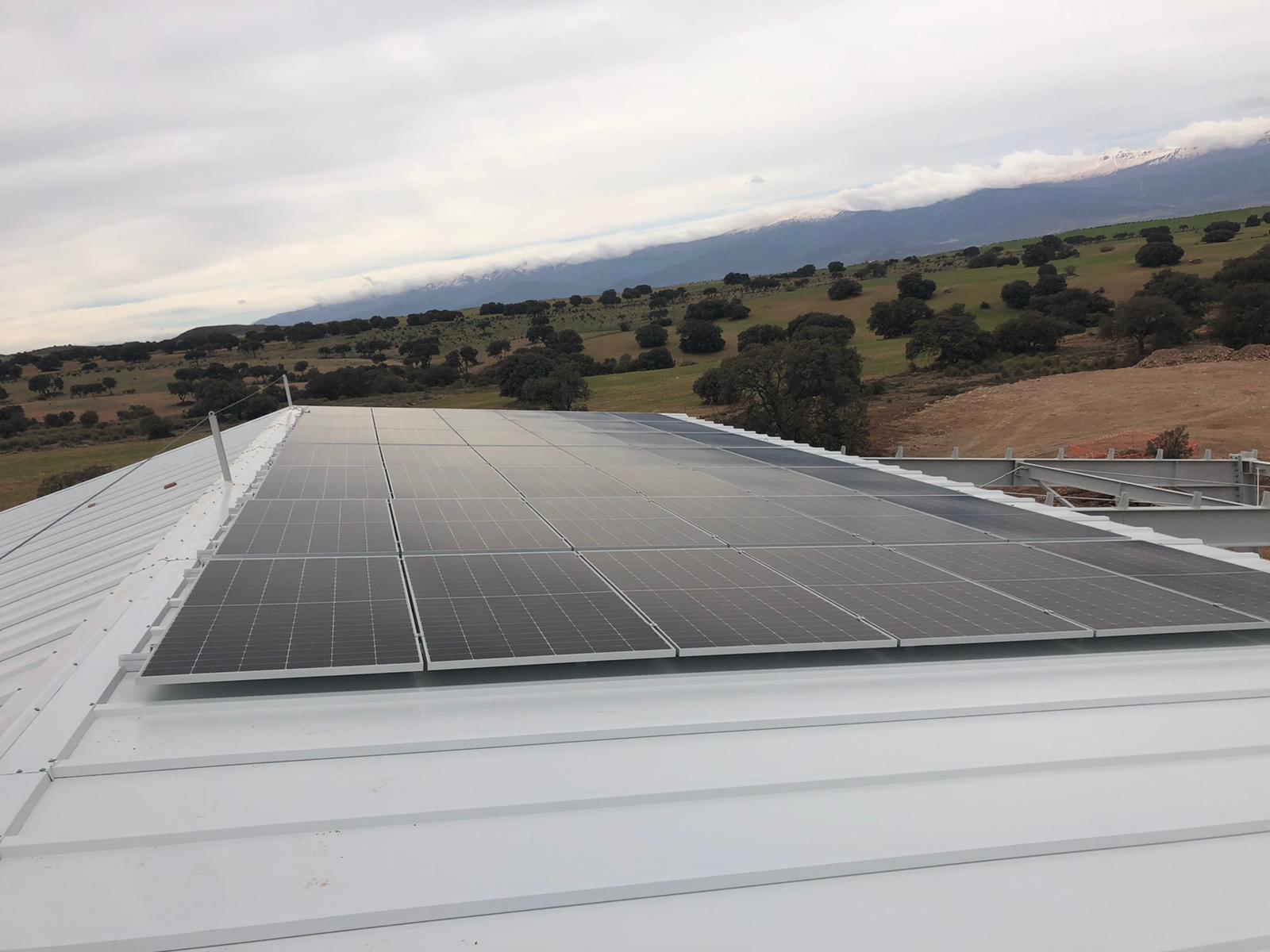

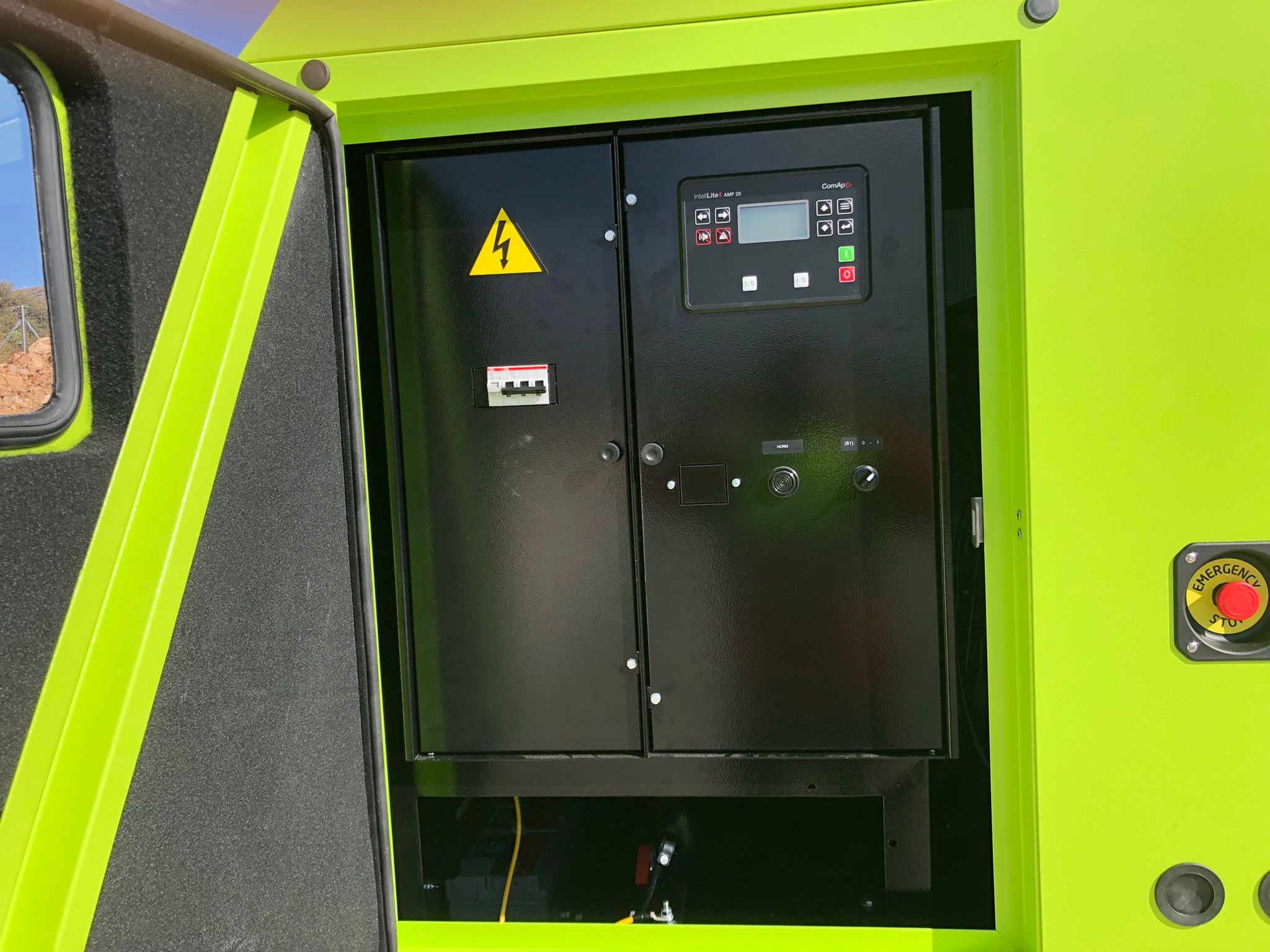

The purpose of the project is the installation of an off-grid photovoltaic installation using a battery system and an auxiliary generator to supply electricity to the installation. The installed photovoltaic power is 47.52 kWp located on the roof of the main building. The installation has a total of 88 JA SOLAR 540 Wp modules installed on a structure attached to a sloping sandwich roof. The connection is made by 2 FRONIUS inverters of 20 kW each; these are connected to 3 VICTRON QUATTRO inverters that act as an alternating grid generator, which feeds the 2 FRONIUS inverters. In addition, the excess production of the photovoltaic installation is stored in a battery kit, 25 in total of 2.5 kWh each. It should be noted that the installation is supported by a 60 kVAS generator set. In addition, the electrical installation and lighting of the building has been carried out.
Client: Aromatics Zalabí
Location: Guadix (Granada)

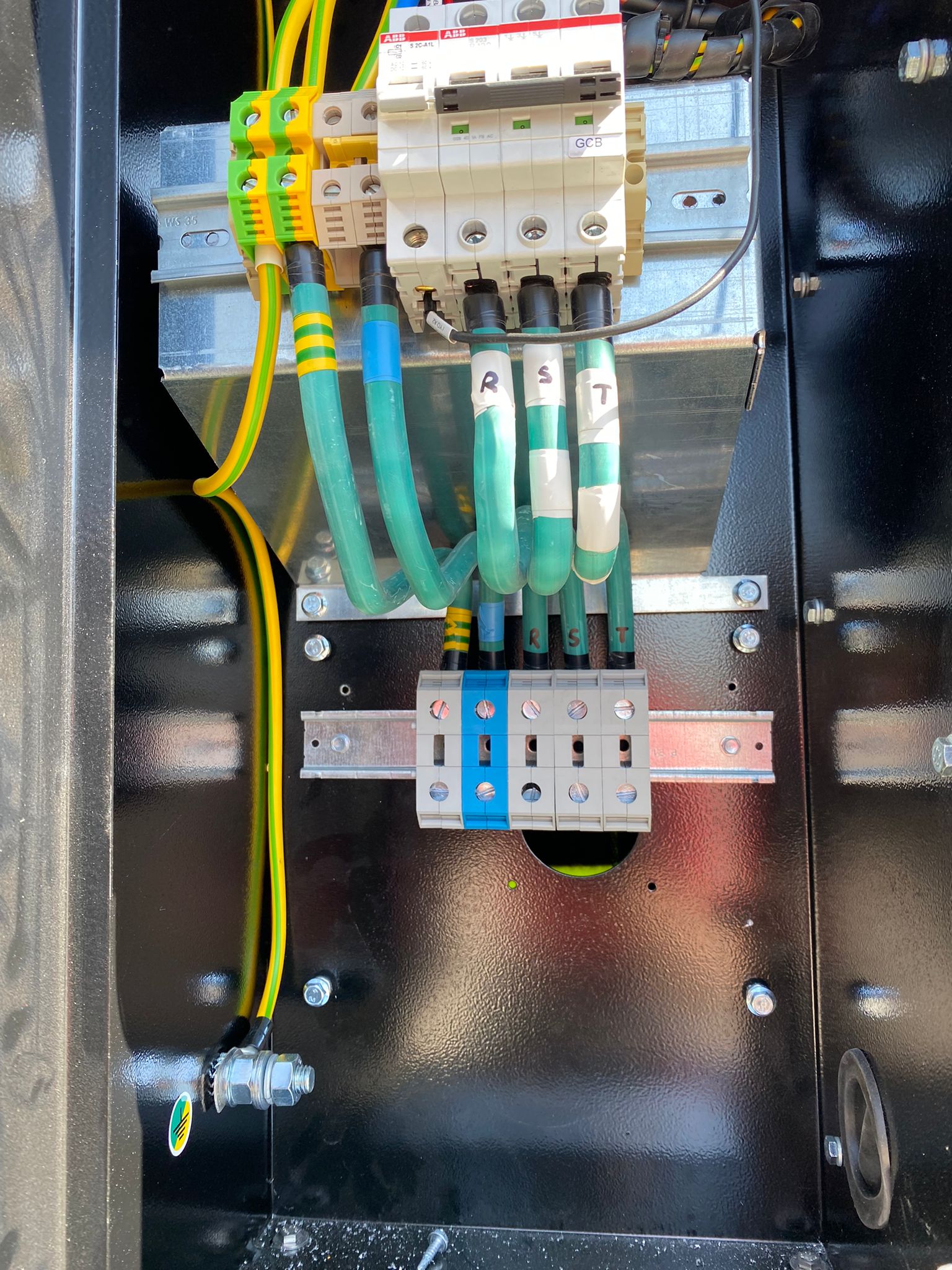

Gallery
