PV installation Ilboc Offices
Client: Iberian Lube Base Oils Company S.A (ILBOC)
The photovoltaic generator has an output of 31.36 kWp. The installation was located on the roof of the administration building, specifically, it was proposed to be installed on the existing pergola. The orientation of the installation was 48º SE, while the inclination of the modules was the same as that of the pergola, horizontal coplanar installation, facilitating the installation and reducing the visual impact of the whole.
The system consists of 64 modules of 490 Wp and a 30 kW inverter. This enables the required nominal power to be achieved.

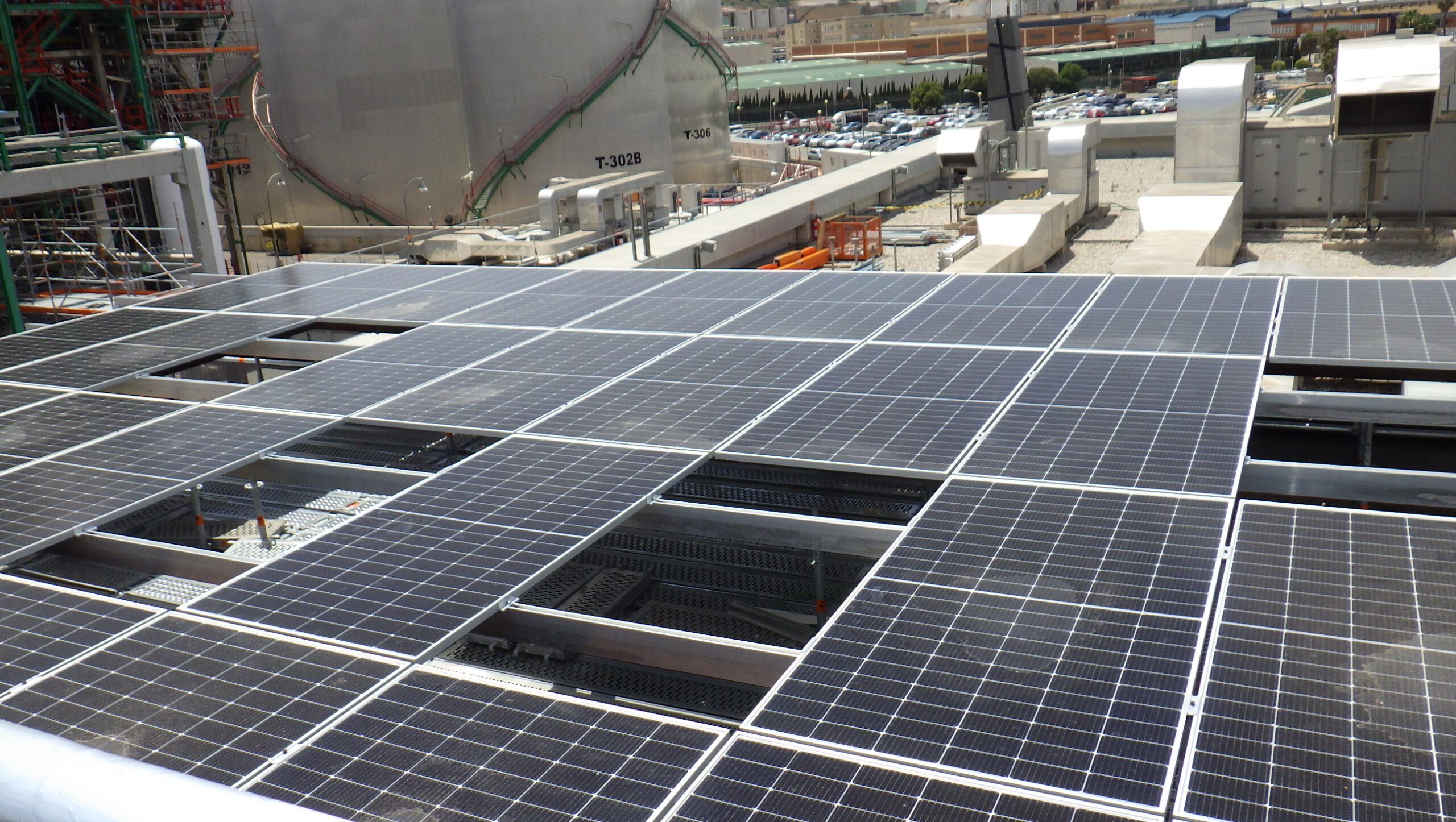

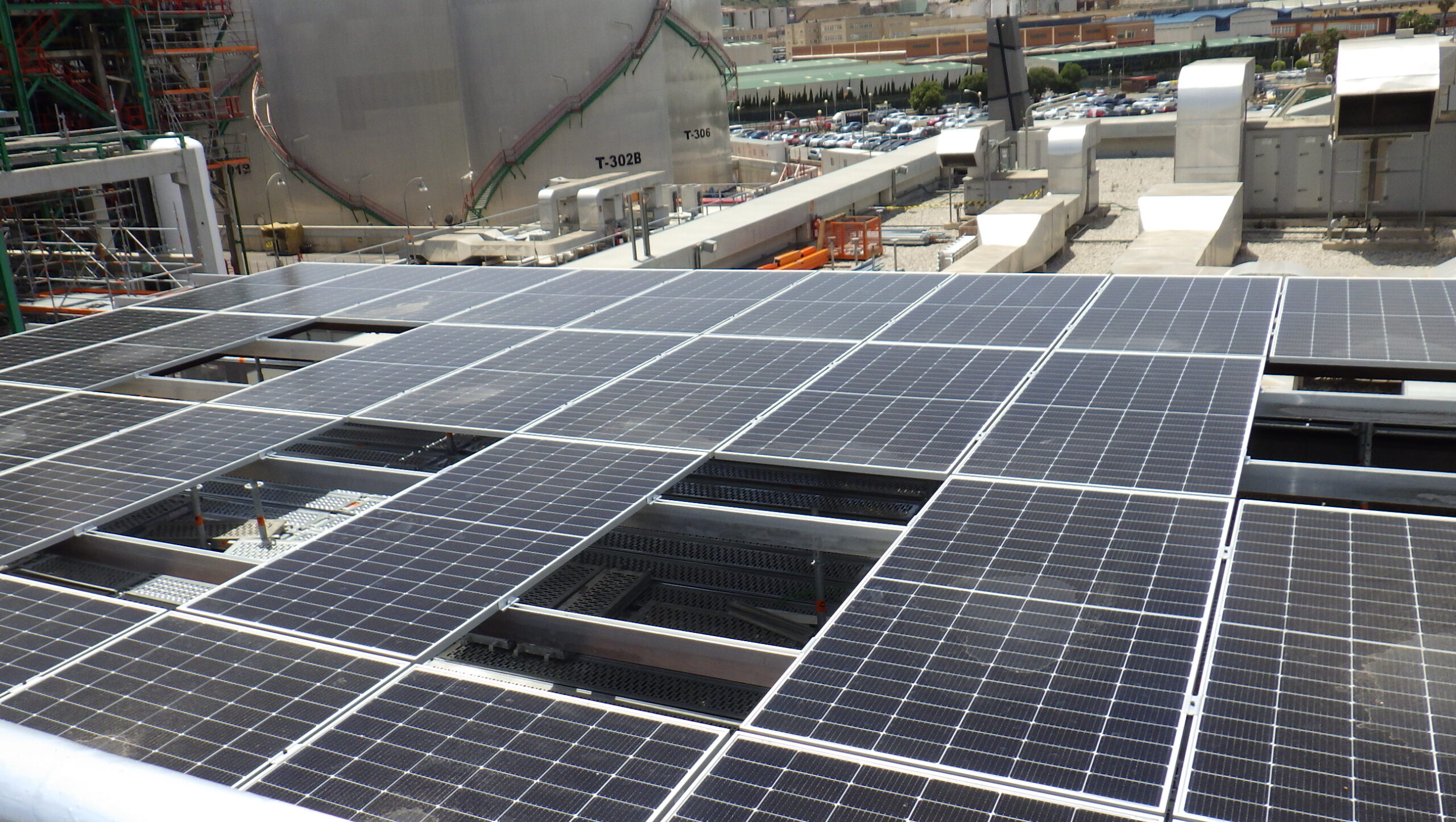

The supports of the aluminium structure were placed and fixed on the pergola, and then the guides were placed on which the photovoltaic modules would be fixed. The solar modules were positioned on the coplanar aluminium structure following the orientation of the pergola, which coincides with an azimuth of 48º SE.

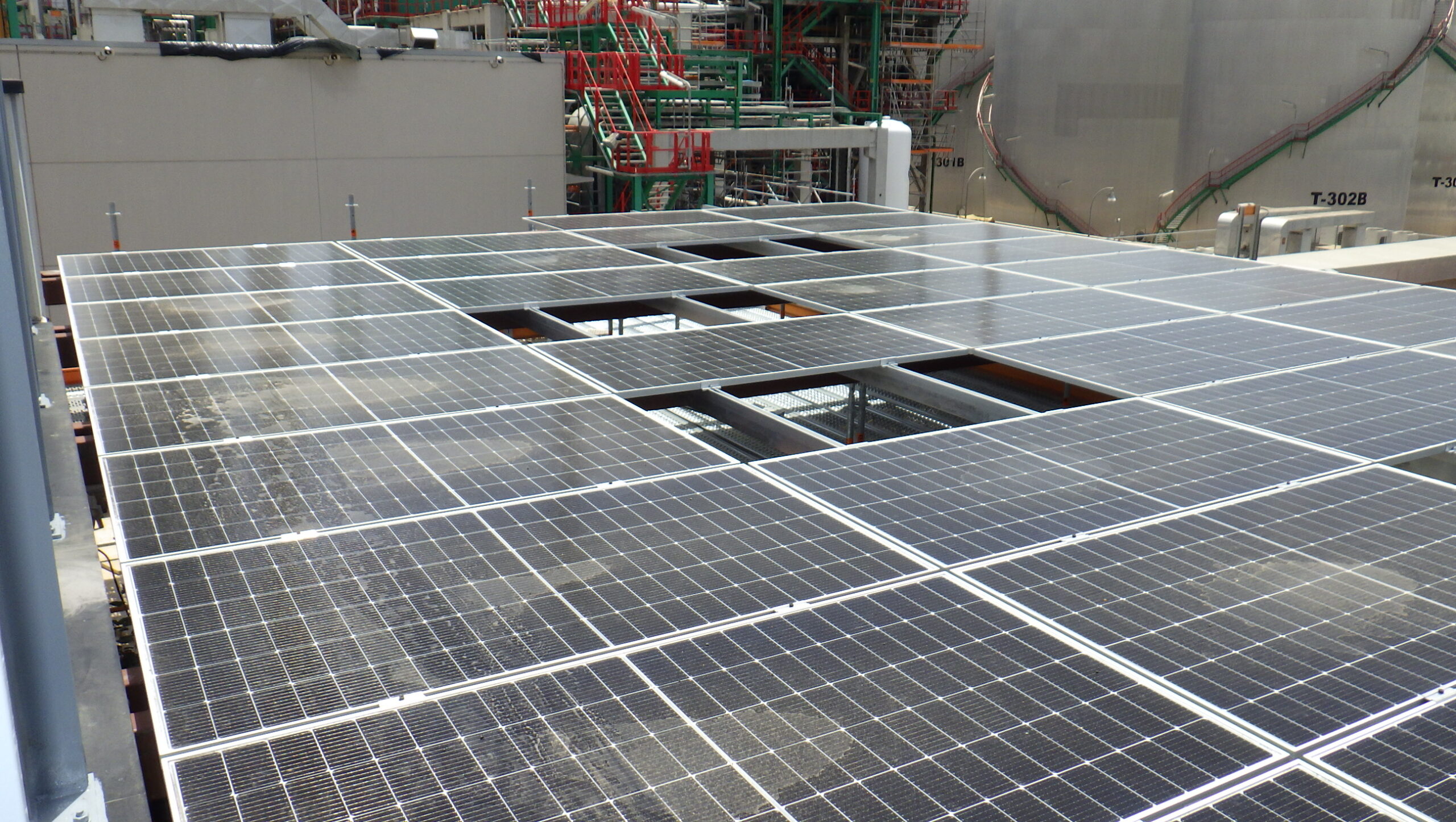

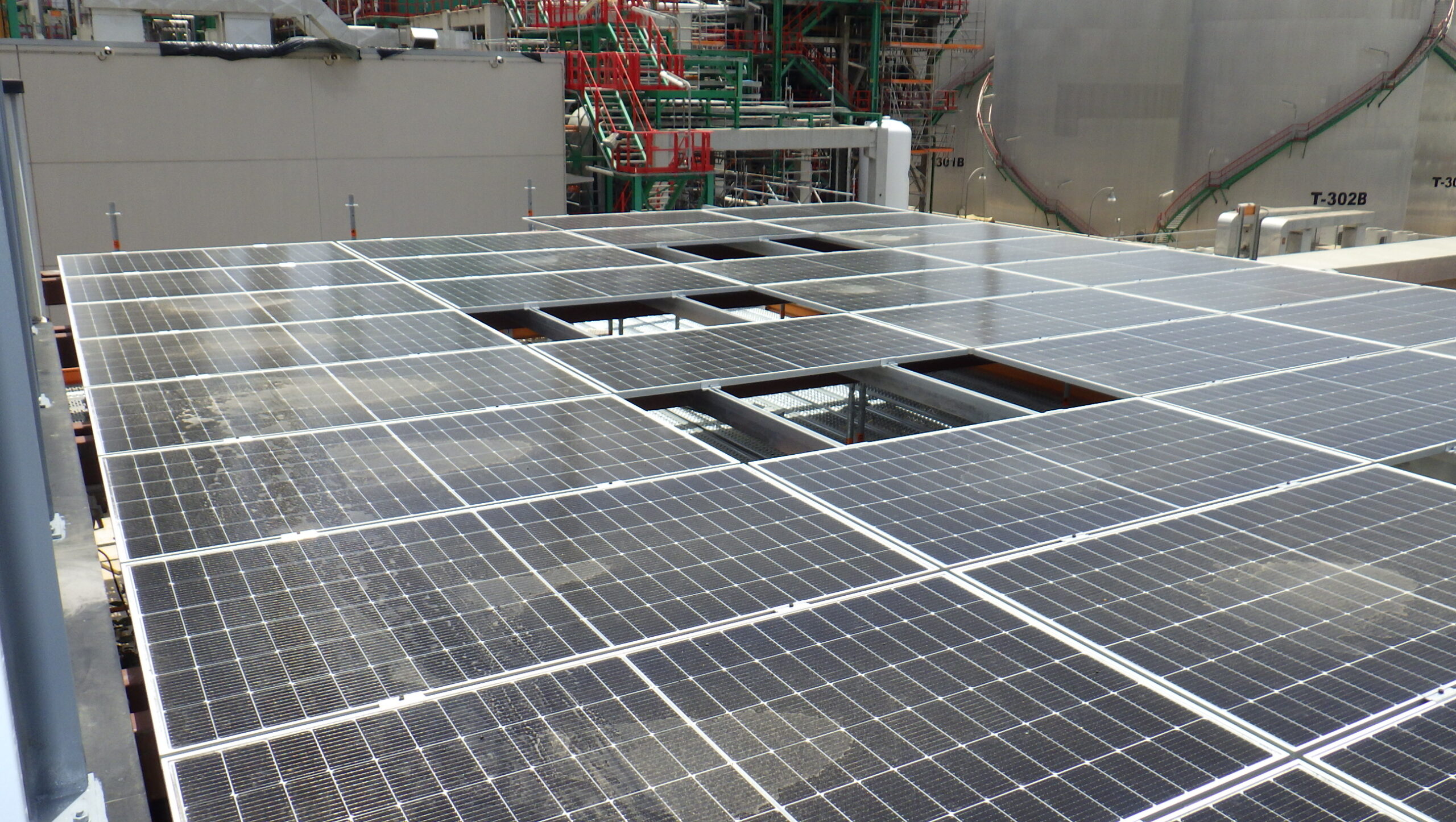

The solar modules were positioned on the coplanar aluminium structure following the orientation of the pergola, coinciding with an azimuth of 48º SE.

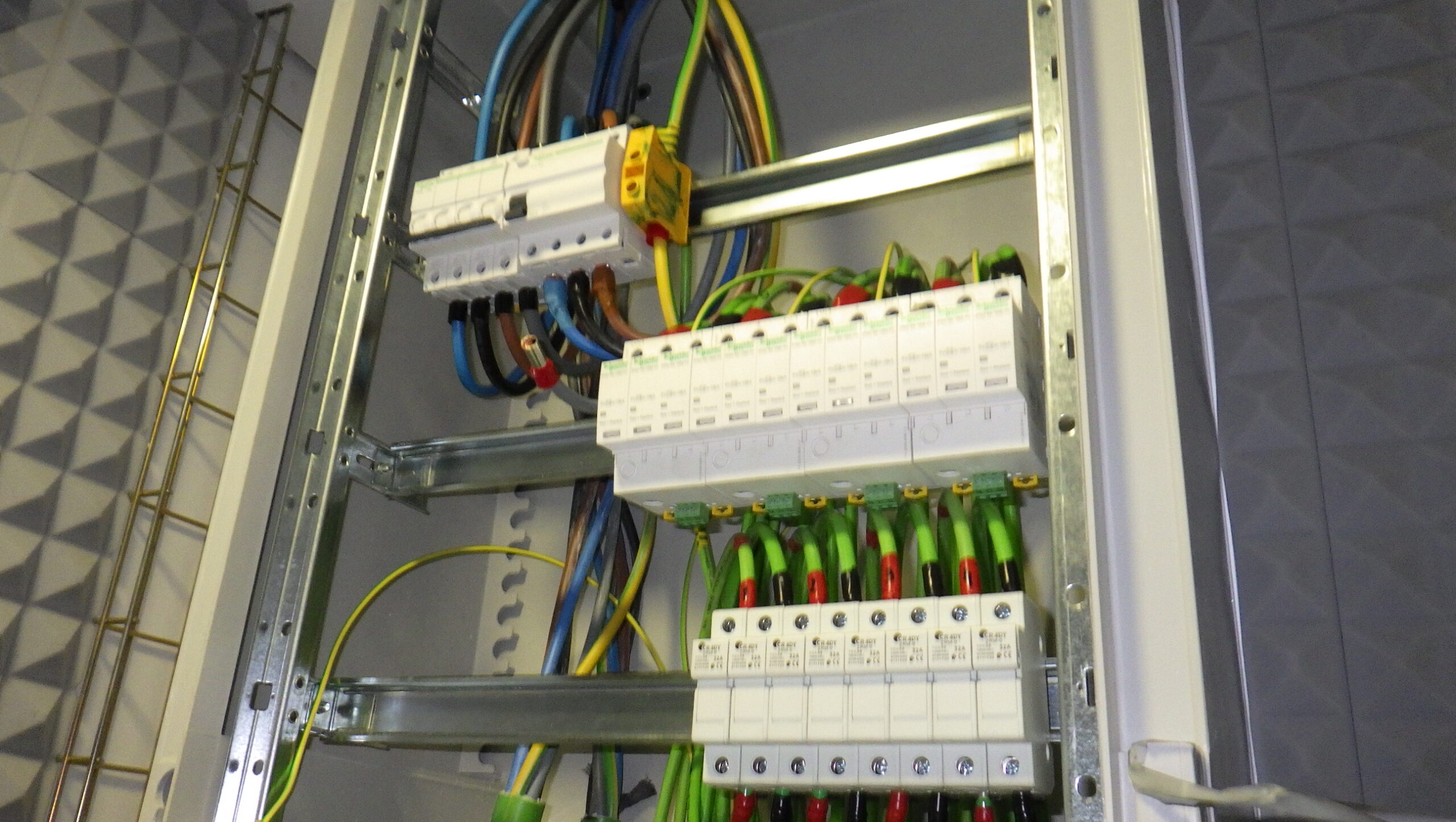

The string wiring through the structure is correctly flanged and protected, as well as having the necessary clearances and the electrical wiring was perfectly labelled. The installation has the protections required by the regulations, so that its operation and maintenance is completely safe. All the DC wiring was installed from the roof to the room where the inverter will be located. From this location, cable was laid under the raised technical floor so that the generated photovoltaic energy can be injected. To prevent the injection of energy into the grid, an anti-spill device is installed in compliance with the current regulations for self-consumption without surplus.
